K-Nearest Neighbours: Effect of K

import numpy as np
import matplotlib.pyplot as plt
from sklearn import datasets, neighbors

from matplotlib.colors import ListedColormap



def knn_comparison(data, n_neighbors = 15):
    '''
    This function finds k-NN and plots the data.
    '''
    X = data[:, :2]
    y = data[:,2]


    # grid cell size
    h = .02
    cmap_light = ListedColormap(['#FFAAAA',  '#AAAAFF'])
    cmap_bold = ListedColormap(['#FF0000', '#0000FF'])


    # the core classifier: k-NN
    clf = neighbors.KNeighborsClassifier(n_neighbors)
    clf.fit(X, y)

    x_min, x_max = X[:, 0].min() - 1, X[:, 0].max() + 1
    y_min, y_max = X[:, 1].min() - 1, X[:, 1].max() + 1

    # we create a mesh grid (x_min,y_min) to (x_max y_max) with 0.02 grid spaces
    xx, yy = np.meshgrid(np.arange(x_min, x_max, h), np.arange(y_min, y_max, h))

    # we predict the value (either 0 or 1) of each element in the grid
    Z = clf.predict(np.c_[xx.ravel(), yy.ravel()])

    # xx.ravel() will give a flatten array

    # np.c_ : Translates slice objects to concatenation along the second axis.
    # > np.c_[np.array([1,2,3]), np.array([4,5,6])]
    # > array([[1, 4],
    #          [2, 5],
    #          [3, 6]])   (source: np.c_ documentation)




    # convert the out back to the xx shape (we need it to plot the decission boundry)
    Z = Z.reshape(xx.shape)


    # pcolormesh will plot the (xx,yy) grid with colors according to the values of Z
    # it looks like decision boundry
    plt.figure()
    plt.pcolormesh(xx, yy, Z, cmap=cmap_light)

    # scatter plot of with given points
    plt.scatter(X[:, 0], X[:, 1], c=y, cmap=cmap_bold)

    #defining scale on both axises
    plt.xlim(xx.min(), xx.max())
    plt.ylim(yy.min(), yy.max())

    # set the title
    plt.title('K value = '+str(n_neighbors))


    plt.show()

Meshgrid explanation

please check this link stackoverflow meshgrid explanation

data = np.genfromtxt('data/6.overlap.csv', delimiter=',')
knn_comparison(data, 1)
knn_comparison(data, 5)
knn_comparison(data,15)
knn_comparison(data, 30)
knn_comparison(data, 50)

---------------------------------------------------------------------------
FileNotFoundError                         Traceback (most recent call last)
Cell In[3], line 1
----> 1 data = np.genfromtxt('data/6.overlap.csv', delimiter=',')
      2 knn_comparison(data, 1)
      3 knn_comparison(data, 5)
      4 knn_comparison(data,15)

File ~/work/omniverse/omniverse/.venv/lib/python3.14/site-packages/numpy/lib/_npyio_impl.py:1982, in genfromtxt(fname, dtype, comments, delimiter, skip_header, skip_footer, converters, missing_values, filling_values, usecols, names, excludelist, deletechars, replace_space, autostrip, case_sensitive, defaultfmt, unpack, usemask, loose, invalid_raise, max_rows, encoding, ndmin, like)
   1980     fname = os.fspath(fname)
   1981 if isinstance(fname, str):
-> 1982     fid = np.lib._datasource.open(fname, 'rt', encoding=encoding)
   1983     fid_ctx = contextlib.closing(fid)
   1984 else:

File ~/work/omniverse/omniverse/.venv/lib/python3.14/site-packages/numpy/lib/_datasource.py:192, in open(path, mode, destpath, encoding, newline)
    155 """
    156 Open `path` with `mode` and return the file object.
    157
   (...)    188
    189 """
    191 ds = DataSource(destpath)
--> 192 return ds.open(path, mode, encoding=encoding, newline=newline)

File ~/work/omniverse/omniverse/.venv/lib/python3.14/site-packages/numpy/lib/_datasource.py:529, in DataSource.open(self, path, mode, encoding, newline)
    526     return _file_openers[ext](found, mode=mode,
    527                               encoding=encoding, newline=newline)
    528 else:
--> 529     raise FileNotFoundError(f"{path} not found.")

FileNotFoundError: data/6.overlap.csv not found.

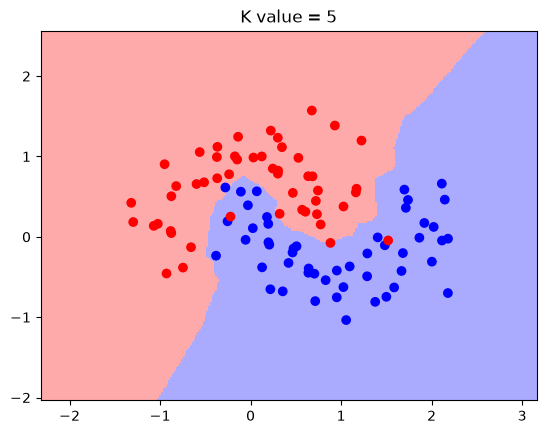

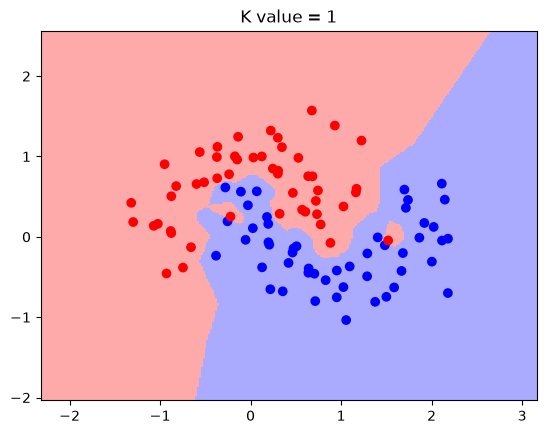

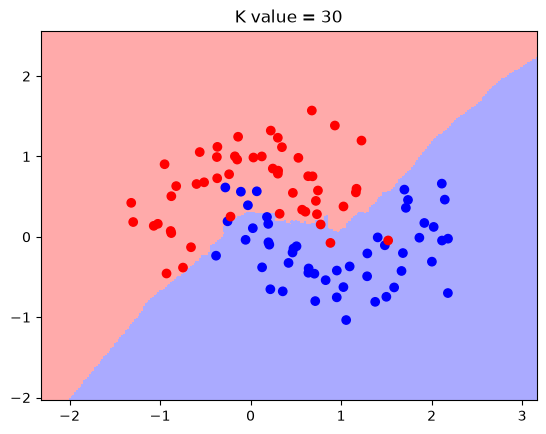

data = np.genfromtxt('data/1.ushape.csv', delimiter=',')
knn_comparison(data, 1)
knn_comparison(data, 5)
knn_comparison(data,15)
knn_comparison(data,30)

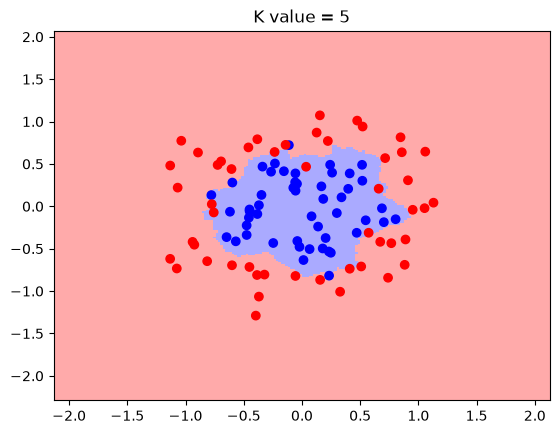

data = np.genfromtxt('data/2.concerticcir1.csv', delimiter=',')
knn_comparison(data, 1)
knn_comparison(data, 5)
knn_comparison(data,15)
knn_comparison(data,30)

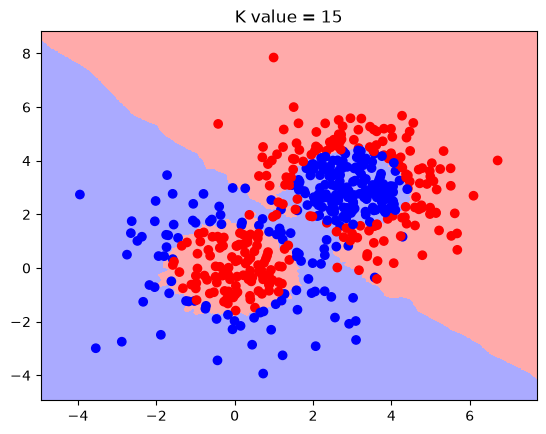

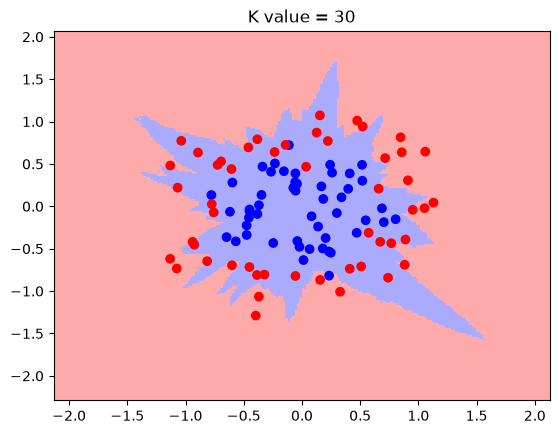

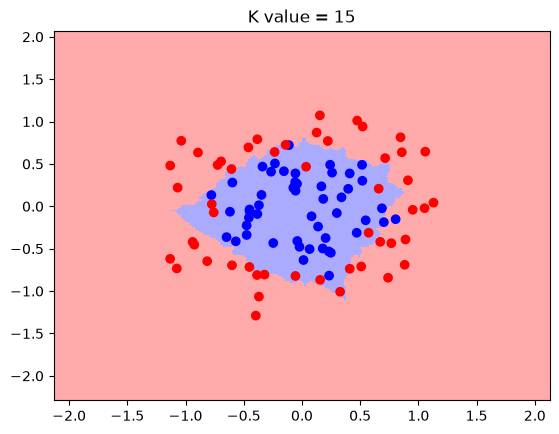

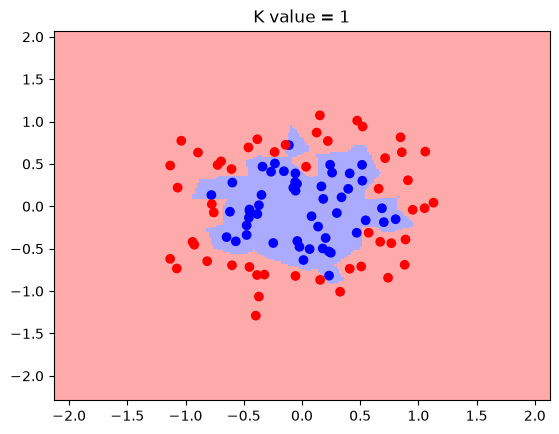

data = np.genfromtxt('data/3.concertriccir2.csv', delimiter=',')
knn_comparison(data, 1)
knn_comparison(data, 5)
knn_comparison(data, 15)

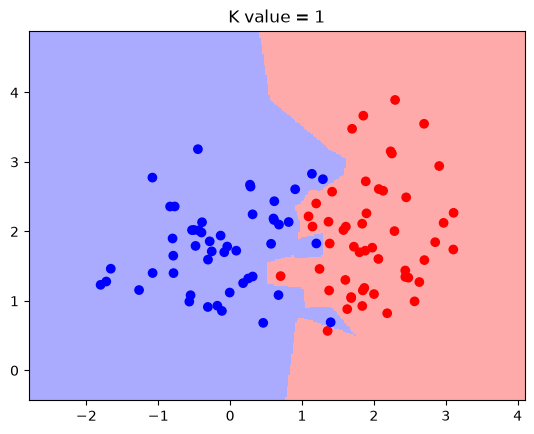

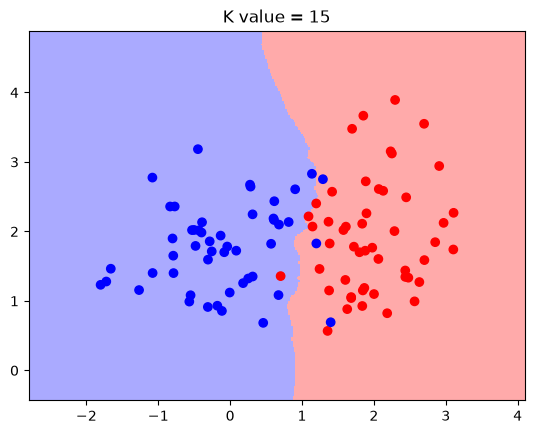

data = np.genfromtxt('data/4.linearsep.csv', delimiter=',')
knn_comparison(data, 1)
knn_comparison(data, 5)
knn_comparison(data)

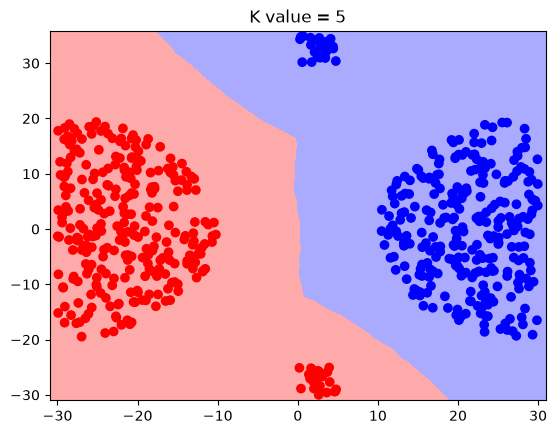

data = np.genfromtxt('data/5.outlier.csv', delimiter=',')
knn_comparison(data,1)
knn_comparison(data,5)
knn_comparison(data)

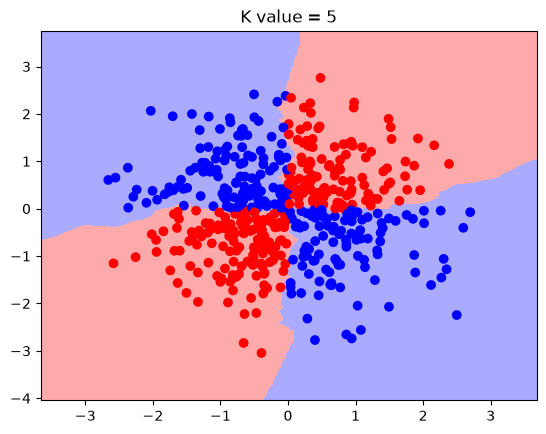

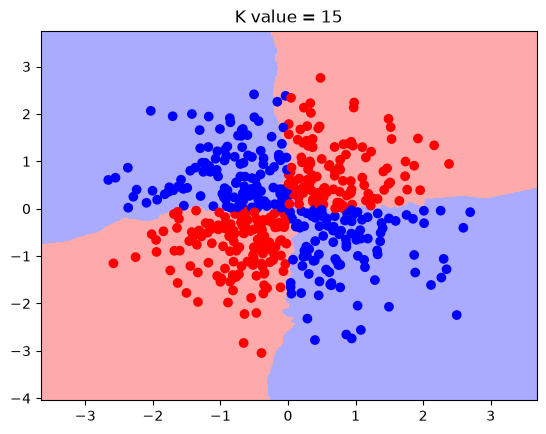

data = np.genfromtxt('data/7.xor.csv', delimiter=',')
knn_comparison(data, 1)
knn_comparison(data, 5)
knn_comparison(data)

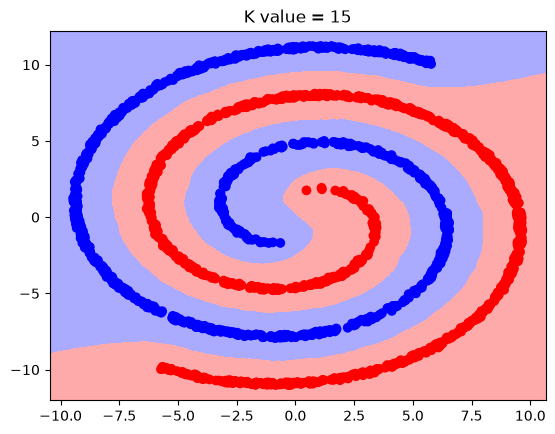

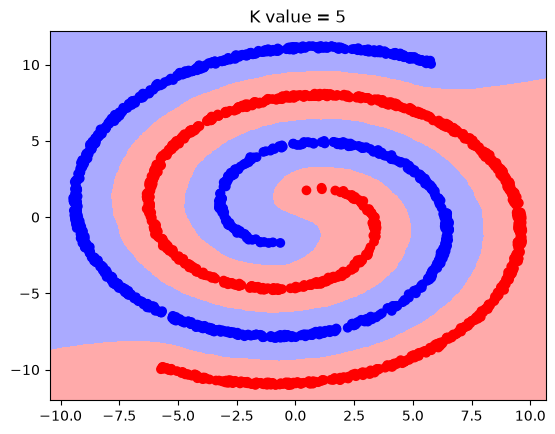

data = np.genfromtxt('data/8.twospirals.csv', delimiter=',')
knn_comparison(data, 1)
knn_comparison(data, 5)
knn_comparison(data)

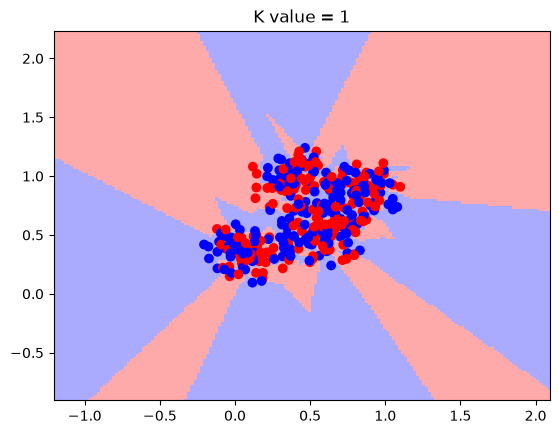

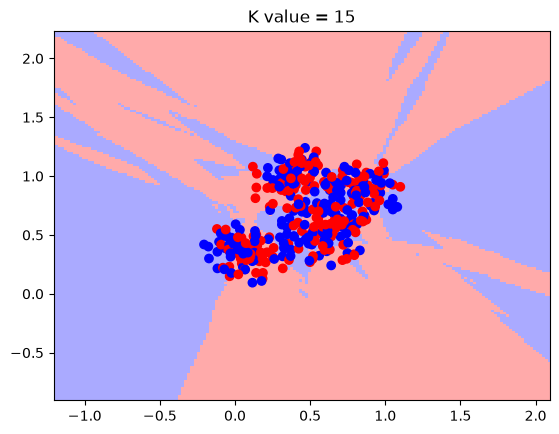

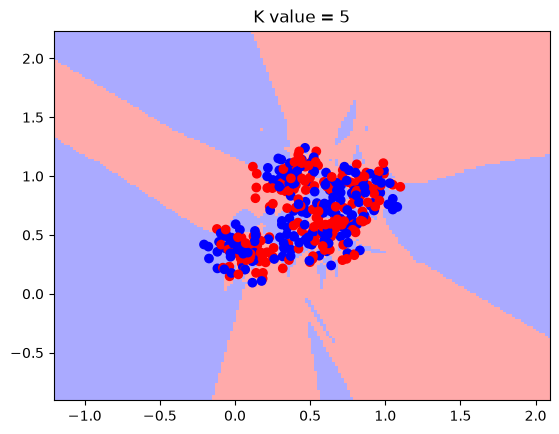

data = np.genfromtxt('data/9.random.csv', delimiter=',')
knn_comparison(data, 1)
knn_comparison(data, 5)
knn_comparison(data)
